AI Spatial Queries

Ceres provides a small set of Actor-oriented spatial queries: field-of-view tests and cover-post sampling. These APIs are building blocks for project AI; they do not provide behavior trees, scoring contexts, or a complete EQS.

Query Paths

Choose between direct physics work and world-snapshot work:

Path	Source data	Completion	Occlusion
`FieldView.Detect`	One target position plus Physics	Immediate	`Physics.Linecast`
`EnvironmentQuery.OverlapFieldView`	`ActorQuerySystem` snapshot	Immediate, completes a Burst job in the call	No
`FieldViewQuerySystem`	`ActorQuerySystem` snapshot	Batched across fixed frames	No
`PostQueryParameters.QueryPosts`	Physics raycasts	Immediate	Raycast hits are the result
`PostQuerySystem`	Actor snapshot plus batched raycasts	Queued across fixed frames	Raycast hits are the result

ActorQuerySystem Snapshot

ActorQuerySystem stores a compact ActorData array containing each Actor's handle, layer, active flag, position, and rotation. Position, rotation, and the active flag are refreshed on its world tick. The Actor list and layers are rebuilt when the world's Actor set becomes dirty.

GetAllActors(Allocator) returns a copy owned by the caller. Each scheduled query therefore observes the snapshot captured when that query begins, not later Transform changes.

The current field-view jobs filter by layer and handle, but do not filter the ActorData.Active value. Remove inactive Actors from the relevant world/layer or filter the returned Actors in project code when activity matters.

Direct Field of View

FieldView combines a close polygon with a radius and view angle. Detect tests one world-space point and then performs a linecast for visibility.

using Ceres.Gameplay.AI.EQS;
using UnityEngine;

var view = new FieldView(
    radius: 20f,
    angle: 120f,
    sides: 8,
    blend: 0.5f);

bool visible = view.Detect(
    target.position,
    observer.position,
    observer.rotation,
    occlusionMask,
    filterTags: new[] { "Target" });

filterTags identifies collider tags that are accepted when the linecast hits them. With no accepted tag, any hit blocks visibility. The test uses horizontal distance for its range limit; it is not a volumetric frustum query.

AllocatePolygonCorners and IsPointInPolygon expose the close-range geometry. The caller must dispose the NativeArray returned by AllocatePolygonCorners. DrawGizmos renders the same shape in the Editor.

Actor World Queries

Use EnvironmentQuery.OverlapFieldView for an immediate Actor lookup:

using System.Collections.Generic;
using Ceres.Gameplay;
using Ceres.Gameplay.AI.EQS;

var actors = new List<Actor>();

EnvironmentQuery.OverlapFieldView(
    actors,
    observer.position,
    observer.forward,
    radius: 20f,
    angle: 120f,
    targetMask,
    ignoredActor: observerActor);

The method appends to the supplied list, schedules a parallel job over the current Actor snapshot, completes it before returning, and resolves handles back to Actors. It tests radius, angle, layer, and the ignored handle. It does not perform line-of-sight raycasts.

Batched FieldView Queries

Attach FieldViewQueryComponent to an Actor for recurring batched queries:

if (fieldViewQuery.RequestFieldViewQuery())
{
    // The request is registered; results are not ready in this frame.
}

visibleActors.Clear();
fieldViewQuery.CollectViewActors(visibleActors);

The first request registers a persistent command for that Actor; later requests replace its parameters. FieldViewQuerySystem schedules all registered commands every FramePerTick fixed frames (25 by default), then completes the batch three fixed frames later. Until completion, CollectViewActors returns the previous cache or no results. It appends to the supplied list.

Set FieldViewQuerySystem.FramePerTick before the subsystem is created. Values of 3 or less violate the subsystem's scheduling assertion.

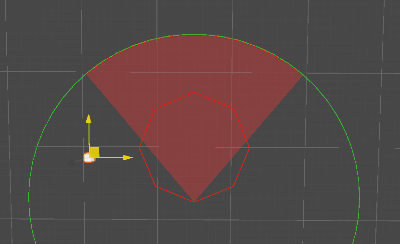

Batched field-of-view query

Cover-post Queries

PostQueryParameters samples raycast boundaries across a fan. step controls the number of angular intervals; depth controls how many times a boundary is refined.

For a synchronous query:

using System.Collections.Generic;
using Ceres.Gameplay.AI.EQS;
using UnityEngine;

var posts = new List<Vector3>();
bool found = parameters.QueryPosts(
    posts,
    sourceTransform,
    sourceTransform.forward,
    coverMask);

The method appends hit points to the supplied list and returns whether the list contains any result.

Attach PostQueryComponent when the work should be queued:

if (postQuery.RequestPostQuery(targetActor))
{
    // Poll on later fixed frames.
}

var posts = postQuery.GetPosts();

Each component has one worker keyed by its owning Actor. A request is rejected while that worker already has pending or running work, and the target cannot be the owner itself. The default system consumes up to MaxWorkerCount commands (5) every FramePerTick fixed frames (25), then completes that batch three fixed frames later. GetPosts continues to expose the last completed cache.

Set PostQuerySystem.MaxWorkerCount and FramePerTick before creating the subsystem; its persistent buffers and scheduler are allocated during initialization.
